Utility coordination surveying keeps a water or sewer project from colliding with everything already buried in the ground. As a system expands, new pipes have to tie into old mains, cross roads and streams and reach service connections without striking existing lines. A survey maps all of that so the design fits the real world. It gives engineers a clear picture of what is there before they add anything new.

Establishing the Survey Limits Beyond the Proposed Pipe Alignment

A utility survey has to cover more than the line of the new pipe. Tie-in points, access areas, service connections and stream crossings all sit off to the sides, and each one affects the design. Drawing the limits too tight leaves out information the engineer will need.

Temporary construction zones matter too. A crew building the line needs room to work, stage materials and reach the trench, and the survey should show that space. Mapping it early avoids a scramble once construction starts.

The right limits come from the project’s full scope. A short talk with the design team settles how far out the mapping should reach. That agreement keeps the survey from being either too narrow or wastefully wide.

Combining Visible Utility Evidence with Record Information

Two kinds of evidence come together in a utility survey. On the ground, a crew locates valves, manholes, hydrants and meters that show where systems run. These visible clues are solid but incomplete, since much of a system hides underground.

Record information fills in the rest. Utility maps, record drawings and easement filings show lines the crew can’t see, though these records vary in age and accuracy. A surveyor treats them as a guide rather than gospel.

The two sources check each other. A manhole found in the field can confirm or contradict a line drawn on an old map. Reading them together gives a fuller and more honest picture than either one alone.

Surveying Critical Invert and Connection Elevations

For sewer work especially, elevations decide whether a system flows. The invert, or bottom of a pipe, sets the path water follows by gravity. A crew measures these inverts, along with rim elevations and flow direction, at every accessible structure.

These readings drive the design. A sewer that drops too little won’t drain, and one that drops too much can run too fast, so the engineer needs accurate inverts to set the slopes. A single wrong elevation can throw off a long stretch of pipe.

Some structures resist measurement. A manhole full of water or debris may hide its invert, and the survey should note the reading as obstructed instead of guessing. Honest labeling keeps the design team from trusting a shaky number.

Mapping Conflicts at Road, Stream and Property Crossings

Crossings are where trouble tends to gather. Where a new line meets a road, a stream or a property edge, it may run into existing utilities, easements or physical barriers. The survey flags these spots so the design can plan for them.

Each crossing brings its own concerns. A road crossing involves the right-of-way and existing pipes below it, while a stream crossing brings culverts, banks and environmental limits into play. Mapping the details lets the engineer pick the best way through instead of discovering the obstacle mid-construction.

Carrying Utility Control from Design Through Installation

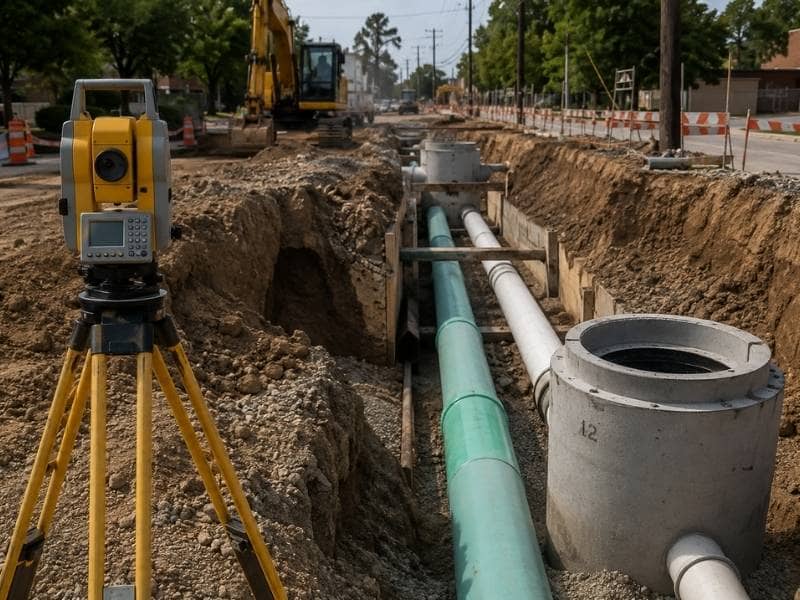

The survey’s job doesn’t end when the design is drawn. The same control that guided the mapping carries into construction, where crews stake the line and set structures to the plan. One consistent basis links design to installation.

Checks continue as the work goes in. Crews verify alignment, transfer benchmarks and confirm depths as the pipe gets laid. Catching a problem in the trench beats finding it after backfill.

As-built measurements close the loop. Once the line is in, a crew records where it actually ended up, which may differ slightly from the plan. That final record helps the next project that ties into the same system.

Frequently Asked Questions

Does a utility survey replace underground utility locating?

No. A survey maps visible structures and records information, but it does not trace live buried lines by signal the way a locating service does. The two work together. A crew still relies on a separate location, plus the public one-call service, before anyone digs.

Why are manhole invert elevations important for sewer design?

Because sewers usually flow by gravity, and the invert sets the height water starts from at each structure. An engineer uses these elevations to design slopes that keep the system draining. A wrong invert can leave a pipe too flat to flow or too steep to work well.

When should as-built utility measurements be collected?

Right after the line is installed and before it gets buried, whenever possible. At that point a crew can record exactly where the pipe and structures ended up. Waiting until after backfill means measuring blind or digging back down to check.
