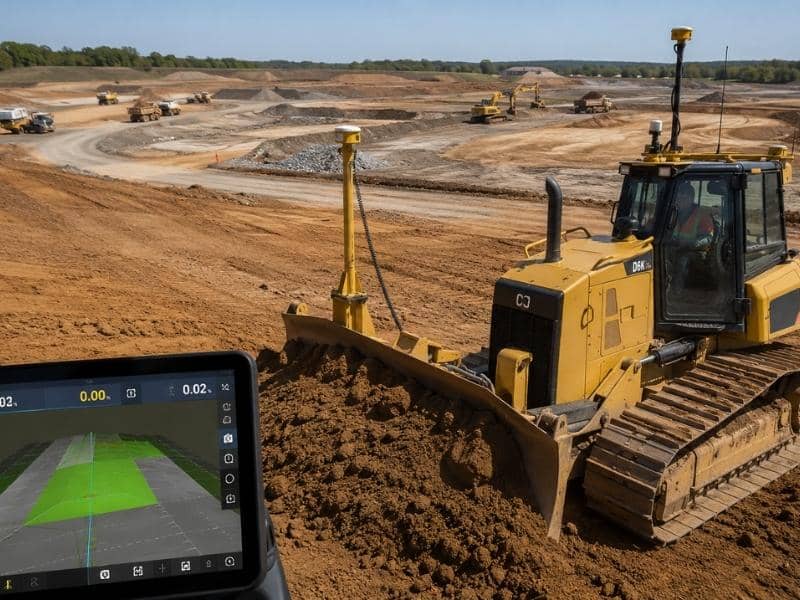

Machine-control surface models let grading equipment follow a design without a stake in sight. On a big earthwork job, a dozer or grader reads a digital version of the finished ground and cuts to it automatically, guided by GNSS or other positioning. The model behind that system has to be built and checked with care. A flaw in the surface becomes a flaw in the dirt.

Turning Design Grading into a Machine-Readable Surface

A design starts as contours, spot elevations and grading limits on a plan. Machine control needs those turned into a continuous digital surface the equipment can read. A technician builds this by connecting the design points into a triangulated model that covers the whole site.

Breaklines shape that surface just as they do in a survey. The edges of pads, the bottoms of ponds and the lines of curbs all tell the model where the ground bends. Without them, the surface smooths over features the design meant to be sharp.

The finished model has to match the engineer’s intent exactly. Every slope and elevation in it should trace back to the approved design. A surface that drifts from the plan sends the equipment to the wrong grade.

Reviewing Design Data Before It Reaches the Equipment

A model deserves a careful review before any machine uses it. Missing breaklines, overlapping surfaces and wrong units all cause trouble in the field. Catching them at a desk is far cheaper than catching them under a running dozer.

Datum and offset problems rank high on the list to check. A vertical offset or a mismatched datum can shift a whole surface up or down by a set amount. The reviewer confirms the model sits at the right height before it goes out.

Constructability gets a look too. The reviewer asks whether the surface can actually be built as drawn, or whether a slope is too steep or a transition too abrupt. Flagging these early saves a call from a frustrated crew later.

Creating Separate Models for Different Earthwork Stages

One universal surface rarely serves a whole earthwork job. A site moves through stripping, subgrade, base and finished grade, and each stage has its own target. Building separate models keeps the equipment cutting to the right level at the right time.

Staged models match how the work really happens. A crew stripping topsoil needs a different surface than a crew fine-grading a pad. Handing them one blended model invites mistakes.

Ponds, pads and staged excavation each get their own attention. A deep cut done in lifts may need several surfaces along the way. Splitting the work this way keeps every stage clear.

Calibrating Equipment to the Project Control Network

Machine control only works when the equipment shares the site’s coordinate system. A process called localization ties the machine’s positioning to the project control. Fumble this step, and the whole surface ends up in the wrong place.

The setup leans on solid references. A GNSS base or a correction service feeds positions, and the crew checks the equipment against known control points before work begins. A quick reading on a set point confirms the machine sees the site correctly.

Verification becomes a daily habit. Crews recheck the calibration each day and after any change to the setup, since a bumped antenna or a shifted base can throw off everything. A minute of checking guards a day of grading.

Comparing Actual Earthwork with the Approved Model

As the dirt moves, crews compare the real ground against the model. A rover walks the site and reads elevations, showing where the grade sits high or low. These checks confirm the equipment is hitting its target.

Drone mapping adds a broad view. A quick flight over an active site produces a surface that can be measured against the design, along with volume figures for the dirt moved. This tells the team how far along the work really is.

The model sometimes has to change. When a design revision comes through, the surface gets updated and reissued so the equipment follows the new plan. Keeping the model current matters as much as building it right the first time.
